Super lightly ridden 2017 Surly Troll Puddy Red Medium Frame Adventure Bike- the ultimate adventure bike and uber capable of doing just about anything you can think of from hauling deer to hauling your but across the tundra.

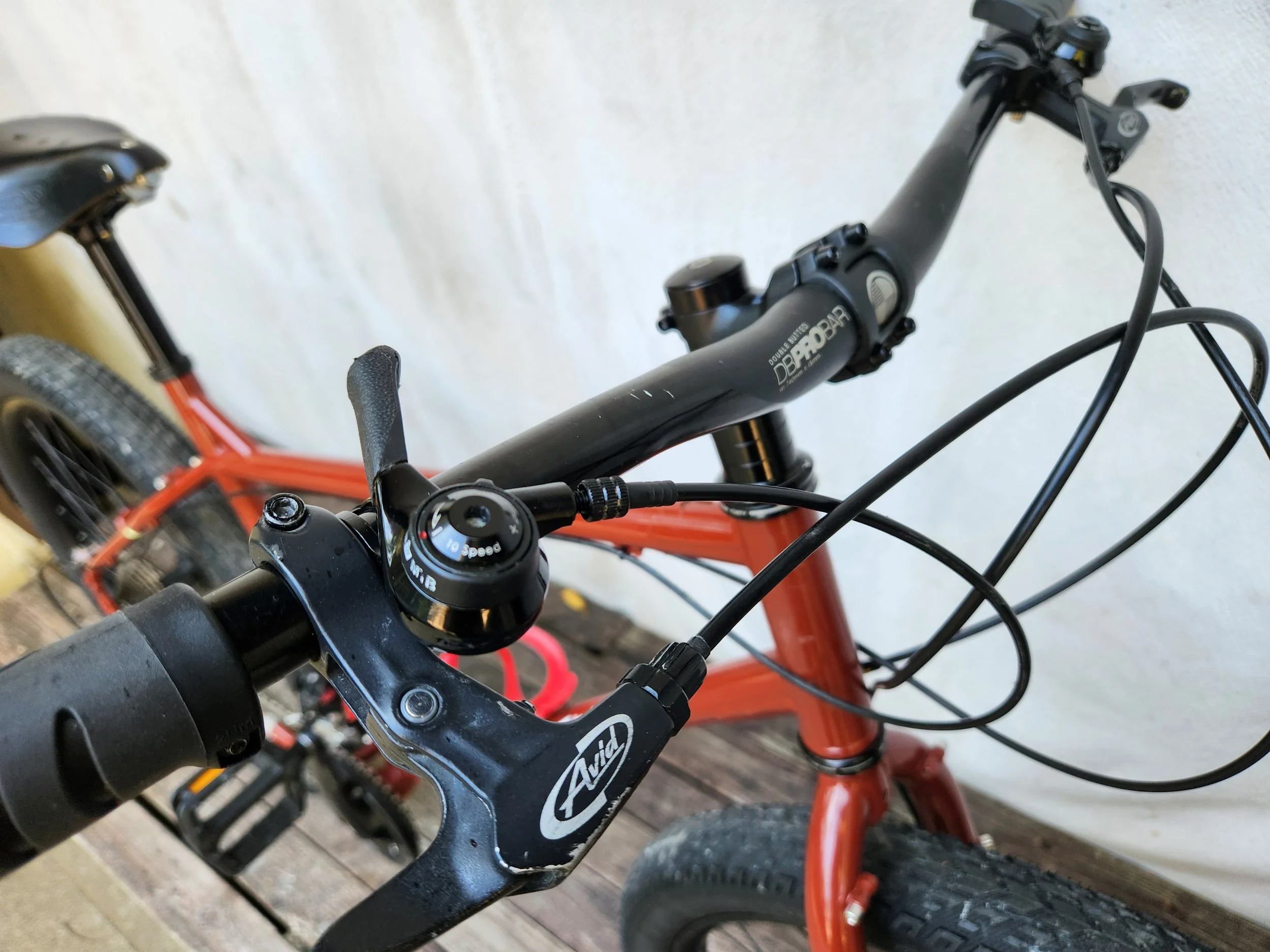

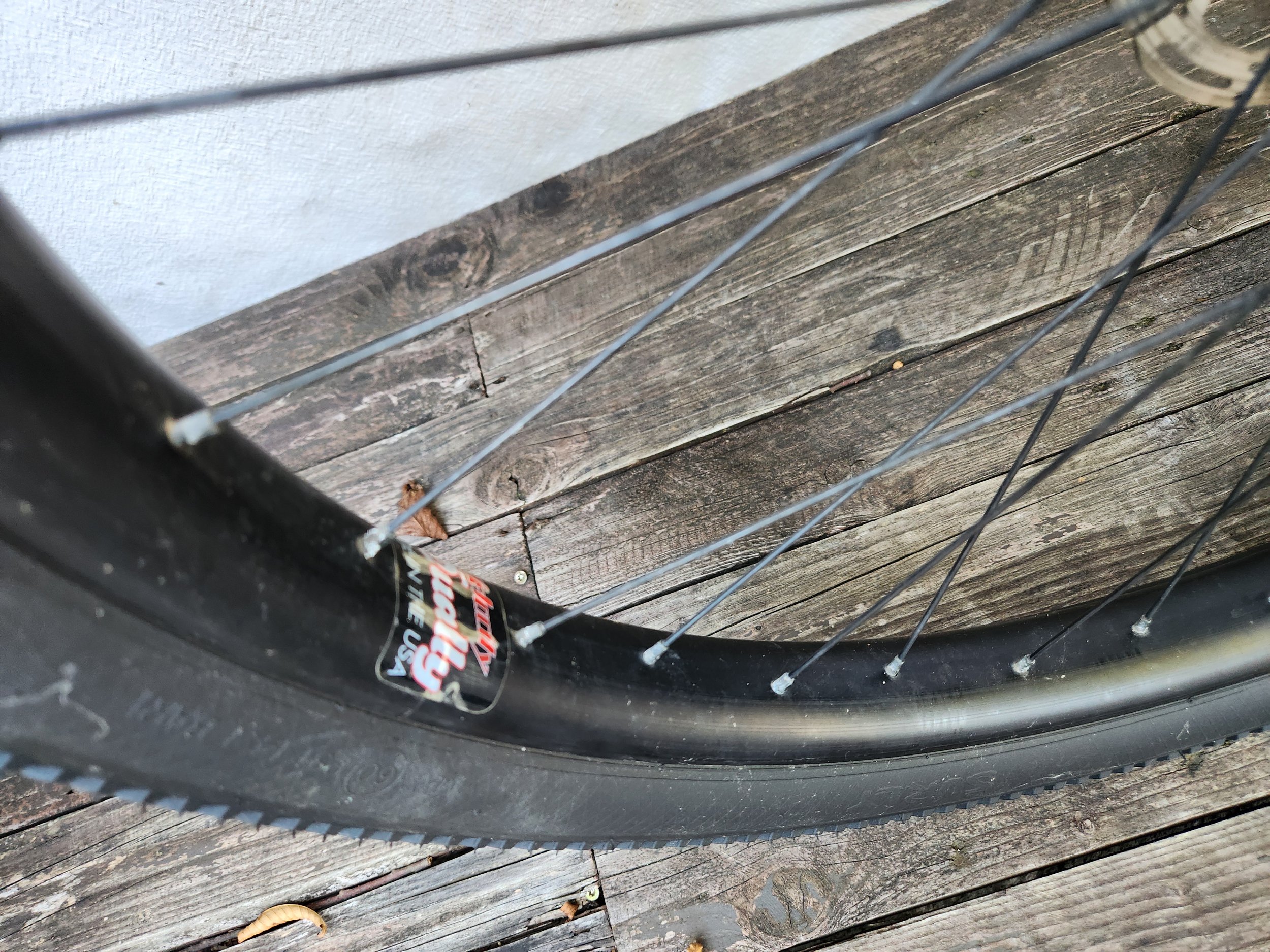

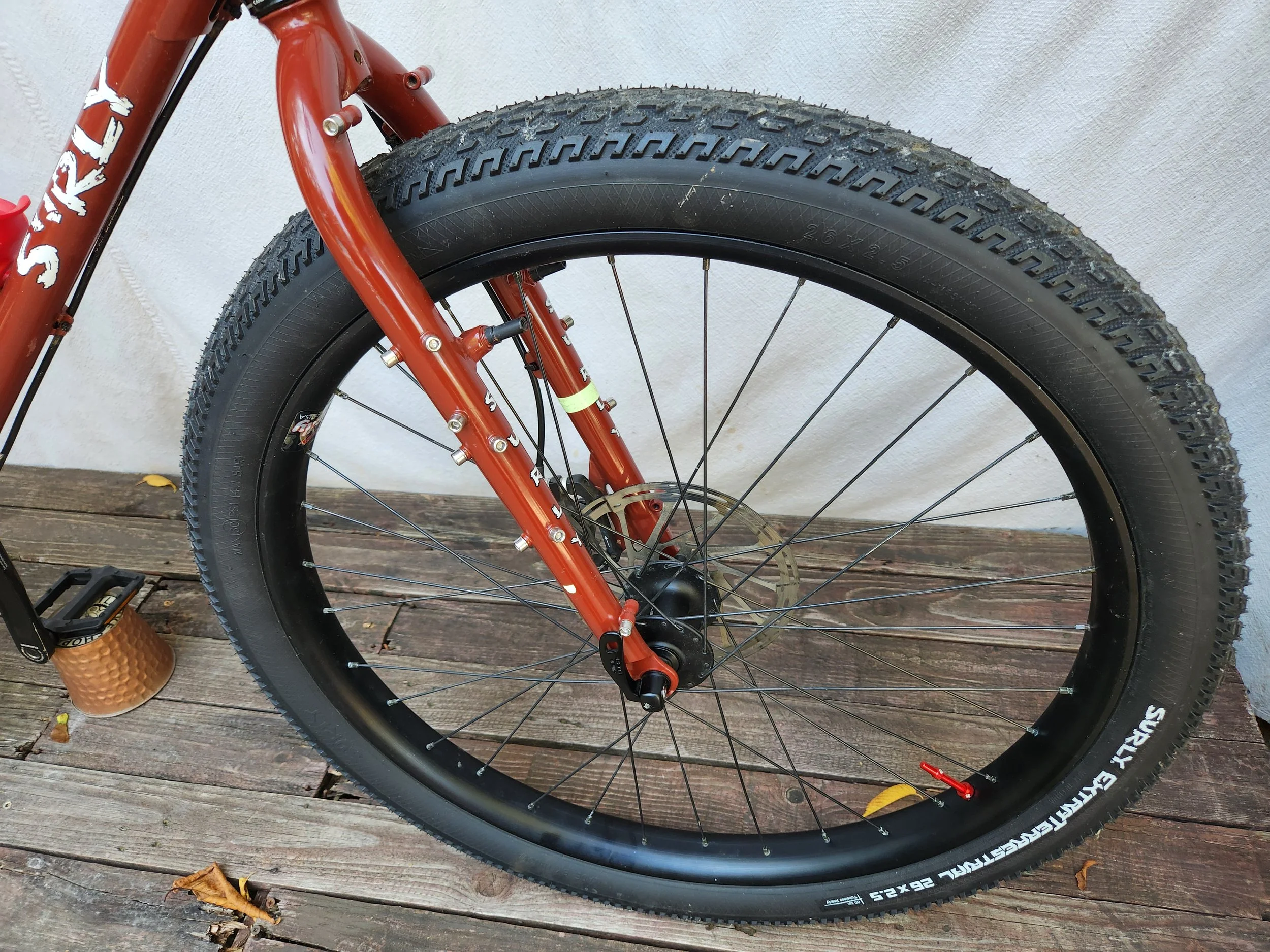

Built with utility in mind this bike features sure footed Avid mechanical disc brakes, modern thumb shifters, 3x10 drive train, a fabulous Brooks saddle, Velocity Dually Wide 26 inch Rims with Surly Extraterrestrial 26x2.5 tires.
The Surly Troll, a wonder of the bike world, is a hard to find machine. Don't pass this up!
FROM SURLY
Off-road touring can be a zesty enterprise, but it’s not without its perils. Bicycles are simple machines that are extremely efficient, but all simple machines carry along with them the chance of breaking down. This efficiency can get you in trouble if your bike decides to break down far away from the comforts of your parent’s basement. If you’re going to ride your bicycles where no one can see, you better take gear that’s up to the task. Troll is up to the task.
Our Troll was once a simple mountain bike frame with a few extras that made it nice for touring. The Troll has evolved into a frame that has been pushed deeper into the category of off-road touring. Its geometry is no longer suspension corrected, which gives it more room for a larger frame bag. We’ve also adorned this frame with our Gnot-Boost spacing, allowing you to use any mountain bike hub whether it be 135mm QR, 12 x 142mm thru-axle, or 12 x 148mm Boost hub. The chainstay yoke has been redesigned to be fully compatible with 26+ tires and comes with the always-comfy Jones Loop bar. The dropouts still allow you to run disc brakes, fenders, a Rohloff hub, and racks simultaneously. It also comes with more braze-ons than you thought possible – there are four triple bottle mounts on the fork alone (don’t get excited, you can only run one Anything Cage per fork leg), as well as two more triple bottle mounts on the down tube.
Troll is a bike that has one purpose – and that purpose is to carry you as far away from society as possible. Man has known for eons the call of the indifferent forest. The inexorable march of time, and dumb shit like cell phones, have dulled our senses and made us afraid. Reclaim your animalistic tendencies atop Man’s greatest invention.
FRAME COMPATIBILITY
Rear dropouts: Horizontal slotted with derailleur hanger and Surly “Gnot Boost” 135, 142, and/or 148mm hub spacing compatibility; features Rohloff torque arm slot and threaded eyelets for fenders, racks, and Surly trailer mounts
Brake compatibility: Disc and rim brake compatible; disc mount are 51mm I.S. with proprietary Surly brake caliper adapter; rim brakepivots are removable NOTE: Rear disc brake is limited to 160mm max rotor and requires the use of Surly caliper adapter (included
with bikes and frames)
Braze-ons: Full-length Surly Trip Guide housing line guides for derailleurs and brakes; sizes SM–XL have two sets of triple bottlemounts plus a seatube water bottle mount, XS has two sets of triple bottle-mounts; removable post cantilever pivots; upper seatstay threaded barrels; threaded holes for racks, fenders and trailer mounting nuts; Rohloff OEM2 axle plate mounting slot
Seatpost: 27.2mm
Seatpost clamp: 30.0mm (Surly stainless included)
Headtube: 1-1/8˝ threadless
Front derailleur: 28.6mm, top-pull or Shimano high direct-mount (adaptor included)
Bottom bracket shell: 73mm shell width, threaded standard English (1.37˝ x 24t)
Chainring clearance: 26/36/48t
Tire clearance: 26 x 3.0˝, individual tire and rim combos affect tire clearance
Seat clamp diameter: 28.6mm
FORK COMPATIBILITY
Tire clearance: 26 x 3.0˝, individual tire and rim combos affect tire clearance
Crown race diameter: 30mm
Front brake rotor: 51mm I.S., 203mm max rotor size
Front spacing: 100mm
Axle type: 9mm
Braze-ons: 4 triple bottle-mounts: mid-and low-blade fully threaded through-blade fork eyelets
SIZE: Medium Frame
